Polybutylene pipe to PEX: how the conversion is actually done

By Grayfield Editorial Team · Published Aug 23, 2026 · Reviewed per our editorial policy

Converting polybutylene pipe to PEX is routine work for a licensed plumber, and the joint between old and new is made with a transition fitting listed for both materials, not with whatever ring slides on.

The tubing being replaced left the factory between 1978 and mid 1995 and reached up to 10 million US homes by InterNACHI's count, the certified home inspectors' association. ASTM withdrew D3309, the specification that governed it, in 2010. So one half of every joint you are about to make sits outside any current product standard.

Can you connect the old tubing to new PEX?

Yes, with a PEX to polybutylene transition fitting. One end grips the old plastic, the other accepts cross linked polyethylene, and the part exists for that purpose.

Two rules keep it honest. The maker's published listing decides what a part accepts, by material and by diameter. And the finished connection stays reachable, because a hidden transition is a leak you find through the ceiling. Our guide to which fitting families suit this material covers the grips in detail.

Polybutylene pipe to PEX adapter: what the part does and does not do

An adapter carries the change in material across one connection. It upgrades nothing upstream.

The old side keeps its age and its chemistry: InterNACHI attributes the failures to oxidants in public water supplies, chlorine among them, which react with the polymer until the wall scales and flakes, grows brittle, and opens micro fractures. An adapter is a boundary part in a staged plan, not a fix.

Sizing deserves the same caution. Residential runs of the old material fall roughly between 1/2 inch and 1 inch by InterNACHI's description, which overlaps the modern range. Overlap is not equivalence. Buy against a published compatibility chart for the diameter you measured.

Can I use PEX fittings on polybutylene pipe?

Only the ones a manufacturer lists for it. A barbed insert with a ring is engineered to hold a specific squeeze on a specific wall, and this wall belongs to a different polymer, aging since at least 1995.

HUD's rehab guidance does not hedge: it puts both the tubing and certain of its connectors on the list of components known to fail. InterNACHI records leak rates above the plumbing norm, often starting at fittings, plastic and metal alike, rather than mid run.

Can you use PEX crimp rings on polybutylene pipe?

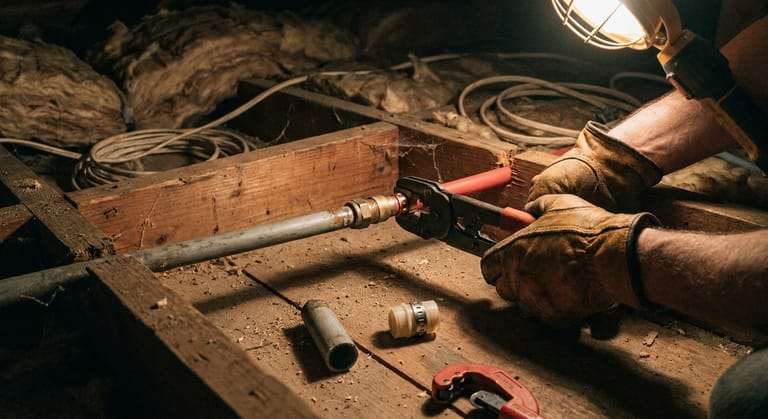

Whether you can use PEX crimp rings and crimp fittings on polybutylene pipe is the question that ends most weekend projects, and it takes the same discipline: the tool, the ring and the fitting all belong to one listed system that names your material.

A copper ring closed with a jaw calibrated for another wall thickness does not become correct because it fits. Where the maker lists no such combination, the joint is unlisted work, and a buyer's inspector will read it that way.

Grey polybutylene pipe fittings and what the old parts tell you

Grey polybutylene pipe fittings are what most owners photograph and post, and colour alone proves nothing. InterNACHI's record runs to grey most often, then white, silver, black and blue, and modern PEX comes in grey as well.

Look at the joint instead. Plastic insert parts sit inside the tubing under a metal ring, and Shell's 1998 SEC filing records that two other manufacturers supplied the polyacetal insert fitting resins and were co-defendants alongside Shell, which made the pipe resin. Metal inserts appear as well. Either way, the joint is where the record says trouble starts.

How to replace polybutylene with PEX, step by step

1. Confirm the material. Find the stamp at the water heater, the main shutoff and stub outs under sinks.
2. Map the scope. Count fixtures and their runs. Fixture count, not floor area, drives most quotes.
3. Choose staged or whole house. Staging leaves legacy runs in service behind listed transitions.
4. Pull the permit. A water line replacement permit runs $30-$500 in 2026, per HomeGuide.
5. Open access, repipe, pressure test. Test while every joint is still visible.
6. Budget the restoration. Drywall patching is a separate trade and a separate line.

What converting polybutylene pipe to PEX costs in 2026

These are the 2026 published ranges that bracket this work, with the source beside each line.

Roughly 70 percent of a repipe invoice is labor by Angi's reckoning, which is why access, not plastic, sets the price. The full cost breakdown by home size takes those ranges apart, and what a replacement job covers day to day describes the week itself.

No settlement money offsets it. Shell's SEC filing records the Cox v. Shell class settlement fund at $950 million, its last claims filed in 2009. That window shut then and stayed shut.

Staged conversion or the whole house at once?

If the house has already had one failure, staging tends to lose. Each patched joint buys time at that joint alone, the honest limit of a repair on this material, and the material guide sets out the repair versus replace verdict.

Red flags: stop and call a licensed plumber

• Water is running now, or a ceiling is stained and soft.
• Two or more joints have let go in the past year.
• The tubing crackles, flakes or splits when handled.
• A run sits inside a slab, so this is no weekend project.
• No listing names your material and diameter.
